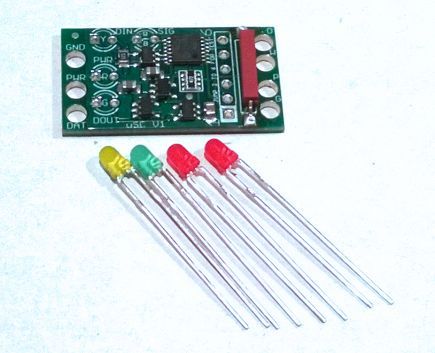

uSCV1 controller: Please note:
Intro Post / Specifications -
http://falconchristmas.com/forum/index.php/topic,832.msg7006.html#msg7006 Intro Video -
http://youtu.be/kozI6qHMTao Note on the amended test mode (ie "test mode at any time")
http://youtu.be/BBAIWbdjTpE Discussion on LED/indicator brightness
http://falconchristmas.com/forum/index.php/topic,835.msg7035.html#msg7035 uSCV1 Manual:
http://falconchristmas.com/wiki/images/USC_Owners_and_Set-up_Manual_1.5.pdfIn summary, the Micro String Controller should replace the function any "SSC", but have the following benefits: smaller, cheaper, pre-assembled, more easily waterproofed, longer controller-to-node transmitting distance, more reliable data transmission, lower overall power consumption, up to 4 indicator LEDs if desired, no-contact test mode if desired.
The board will come 100% pre-assembled, PIC programmed with the latest Falcon firmware and magnetic test switch installed. It will be ready for channel programming, your wire attachments and then make blinky nodes. You do not HAVE to add anything else to make blinking nodes. Simply attach your power, data, and node wires then program channel set-up.
Four indicator LEDs will also be included which you can add to create a 'Mega' version if you wish.
Pre-Assembled/Optioned Board - $10.80
Co-op Goal: 175 boards
==============================================

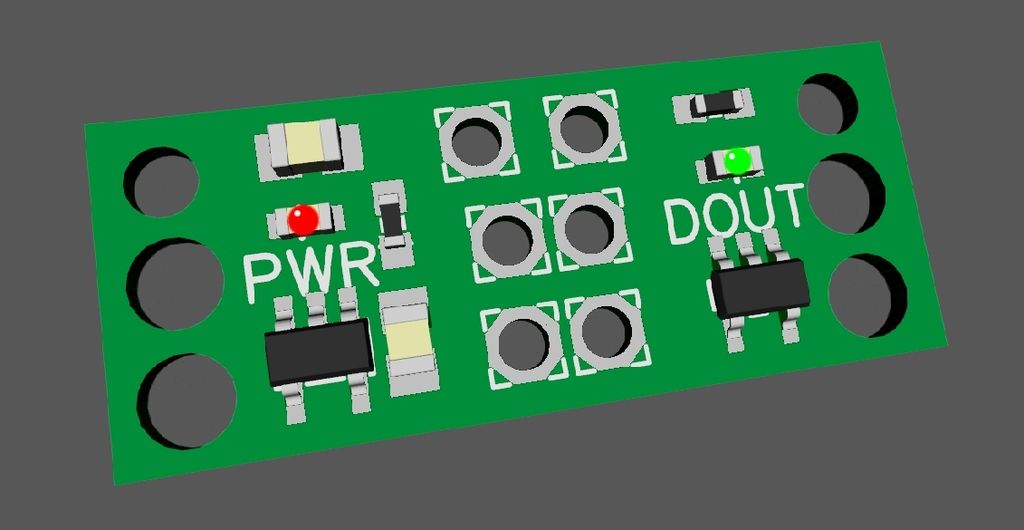

uAmpV2 or Micro Amp Version 2 Please Note:As for 2016. Same great performance, though due to popular request, the LEDs are now surface mount and will come pre-assembled. Board size is slightly larger (about .040" more in each dimension) and hole sizes are slightly enlarged to reduce the minor wire fitment issues reported in 2015.
A demonstration video of uAmp V1 is live at:
https://www.youtube.com/watch?v=lp8QYcV57bo Introductory thread with questions / answers:
http://falconchristmas.com/forum/index.php/topic,2115.0.htmlAt the basic level, the Micro Amp is a signal conditioner / amplifier which can be used with any square wave data source. The uAmp has been designed using the same MOSFET drive technology as the uSC and has some of the same design features such as built in strain relief holes, basic board comes pre-assembled and ready to use, pre-formed holes for optional LEDs (indicating 'power' and 'data out'), compact size, ESD protection and short circuit protection on the data line.
Unlike the uSC, the uAmp is solely a digital signal processor. It has no PIC chip and is not capable of differentiating different 'channels' of data the way a string controller does - it simply processes, clarifies and amplifies ANY data fed to it. Conversely, it is a simple 'plug-n-play' device. No PIC programming, firmware, channel setting, etc is required and you do not need to assign 'null' channels to a uAmp as you would with a null node.
Some possible uses:
If you wish to send data from an unmodified SSCV1 or SSCV2 more than a few inches, or an SSCV3/V4 more than a few feet, a uAmp can be added to the output line. Once installed, the low power, 'messy' SSC data is amplified and clarified so the controller can now be 50, 60, 70 or more feet to the display element.
"Null Node" - Data transmission between nodes is limited to around 6-15 feet (regardless of string controller*). Installing a uAmp after a node will condition and boost the data signal strength so gaps between elements can be 50, 60, 70 feet or more if needed. Because the uAmp processes all data and does not use the "take one and pass it on" format a node does, the uAmp does not need to be programmed into the display, or take up channels as a null node does.
*Note - The data stream is regenerated and retransmitted by each node. Due to this, a controller with a strong output (such as the uSC) can send data quite a far distance to the first node, however, when that data is retransmitted by the first node, the distance is again limited to around 6-15 feet.
Co-op Goal: 800 pieces Price: $4.65 each
===============================================

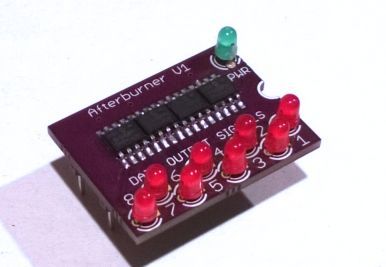

Afterburner - a MOSFET driver kit for Falcon F8 / F16V1 boards.
A demonstration video is live at:
http://youtu.be/c035HnwbD-E Introductory thread with questions / answers:
http://falconchristmas.com/forum/index.php/topic,2326.0.html User / Install manual:
http://falconchristmas.com/forum/index.php/topic,3406.msg37135.html#msg37135Afterburner is designed as a simple 'drop in' kit to upgrade Falcon F8 / F16V1 boards to MOSFET drive technology like that used in the uSC - Micro String Controllers. This will boost the Falcon F16V1 or F8-to-Node distance from 20-30 feet to 50-60 feet or more.
The kit is a simple hardware board and resistor array pair requiring no programming, no setting changes, no PIC processors, etc.
One Afterburner kit would upgrade one block of 8 channels - ie one kit to fully upgrade Falcon F8, one or two kits for Falcon F16.
You can run the Falcon F16 output 'split' if desired (ie one side using the original op-amp output for local node strings, one side with the Afterburner for more remotely located strings) without diminishing the performance of either side. If you wish to boost less than an 8 channel block, the uAmp signal conditioner/amplifier would be one option to provide the same MOSFET drive technology for individual strings.
Co-op goal: 30 pieces Price $16.50 each
Co-op limit: 36 pieces
================================================
Please put your order request in the following format:<preferred contact email up to but not including the @ symbol>
uSCV1 + 4 LEDs: <quantity>
uAmpV2: <quantity>
Afterburner + 9 LEDs: <quantity>
<contact email domain>
