Formally Introducing a New Micro String Controller - SC, the Micro String Controller

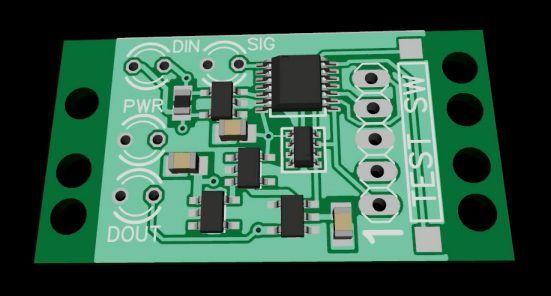

Basic, ready-to-program board. 1.240" long x 0.690" wide

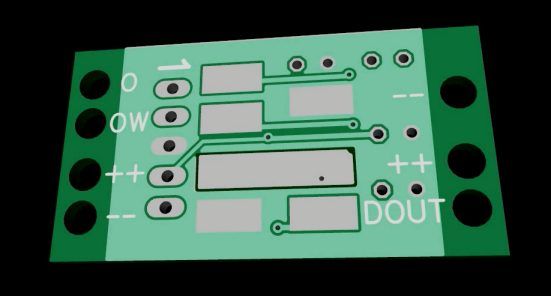

Back side with solder mask and plated solder pads

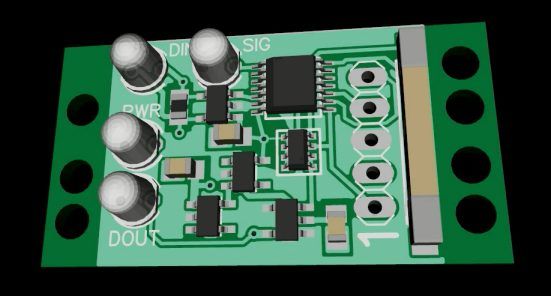

Some options including indicator LEDs and magnetic reed switch (explained in depth in the video)



I am NOT the worlds greatest video editor, but a demonstration video is live at  http://youtu.be/kozI6qHMTao


Some Specifications:
(anything listed here will supersede anything I mentioned in the video)

Voltage Input:  5-16VDC

Voltage Output to Nodes: Same as Vin

Voltage Output on Data Line: 5V square wave across 5-16V input range

Controller Power Consumption:  (maximum with 4 indicator LEDs installed)

    Idle (on, but not transmitting data) - 23mA
    Full Tx mode - 26mA

Controller-to-Node Data Tx Distance: Always keep as short as practical, realistically 10-20 feet, stress tested at 90 feet.

Node Compatibility:

    TM1804 - Confirmed
    TM1809 - Confirmed

    WS2811 - Confirmed - Thanks arw01
    WS2812 - Likely
    WS2812B - Likely

    Pixabulb (WS2811) - Likely

    INK1002 - ?
    INK1003 - ?

    WS280X - No (requires additional clock signal this controller does not transmit)

    Maximum number of nodes controlled:  150

    Overall dimensions - 1.240" long x 0.690" wide (slightly shorter than an SD memory card and under 3/4 of the width)

    "Through hole" PIC programming tested to 200 programming cycles, still in very good condition.
     (Strongly consider if you 'need' to add programming header)




Some design Features:
(anything listed here will supersede anything I mentioned in the video)

- Refined to get board small as practical

- Uses all SMT on the basic board for small size, cost effective components

- Selected components optimized for the job.  Cold weather operation, transmission line capability, MOSFET driver, ESD protection etc

- Comes ready to program (no board assembly needed), just program firmware, attach wires and go

- Flat board with no contact pins easy to waterproof in heat-shrink tubing.

- All strain relief holes big enough for the 3-4 pin connectors on the market, bundled Cat5, or most any other wire you need

- RS485 receiver, 14kV ESD protection

- On board voltage regulators provide self regulating / auto shutdown overload protection.

- MOSFET driver output section: Schmitt triggered, ESD protected, true push-pull output for solid data transmission through long wires. (Not recommended, but bench tested for weeks with 90 foot SC-to-first-node distance)

- Upgrades are configured to not add any additional cost to the basic board.  Upgrades can be completed with simple through-hole soldering (LEDs and pin header) or simple surface mount attachment (magnetic reed switch)



Upgrades which can be added separately:

Magnetic Reed Switch:  a no-contact/waterproof way to enter test mode

Indicating LEDs (specific LEDs have internal current limiting resistor to save space, cost and complexity on board)

Some discussion of indicator LED brightness with pics and vid:   http://falconchristmas.com/forum/index.php/topic,835.msg7035.html#msg7035

- PIC signaling: Confirms PIC firmware programming and boot up.  Confirms PIC data processing and infers frame rate through blinking speed

- Power LED: Indicates power at the 3.3V regulator on the controller, which effectively confirms the complete power chain of the board:  12VDC input > 5.0V regulator > 3.3V regulator, easily indicates blown fuse on hub or open circuit on power wires.

- Input Data LED: Indicates data present on the input lines to the controller.  Can also indicate data quality as the LED will emit a notable blink for each frame of data. (individual bits of data transmission are too fast to see)  so an LED with a slow blinking rate indicates a slow frame rate while a fast blinking (or nearly steady on) LED indicates a fast frame rate.  An LED which alternately blinks fast/slow or appears to be on and off intermittently may indicate a data transmission issue such as the show computer locking up or falling behind in sending data, or an intermittent contact in a data connector.

- Output Data LED: Indicates data present on the output lines of the controller.  Indicates data quality and integrity as detailed above.

- 6 Socket programming Header:  Not required for initial programming, but can be useful if repeated / multiple program events are needed.  Socket header eliminates exposed 'live' pins / chance of short circuit found on SSC models.



Currently there are a small number of hand etched, hand assembled boards being torture tested 24x7.  The next planned step is to have a small number of boards professionally etched and hand assembled for additional testing.  Depending on interest level, this could then lead to (per Dave's suggestion) a co-op of at least the basic boards, with possible optional upgrades depending on interest.

Please use this thread to ask questions.  If you wish to reply 'I'll take 10' - please enter that in the survey.

Enjoy!

Corey
